Intellectual Motoer Protector From Electrical Components Direct Ltd

Intellectual Motoer Protector

JD-501

JD-501S

JD-601

JD-601S

Specifications

Model	JD=501S	JD-601S	JD-501	JD-601
Rated voltage		AC380 50Hz
Rated current or rated power rang	1-20A	20-100A 100-200A	1-50A	50-200A
Over load time (reverse time limit)	5-300S		5-300S
Phase breaking action time	≤2S		≤2S
Three-phase current unbalance(differ 50%)	≤2S		≤2S
Jam revolving time	≤0.3S		≤0.3S
leakage protection	---------	≤2S	---------	≤2S
Reset	Break reaet		Break reaet
Protective contact	One group constant close contact
Contract capacity	AC380V 3A	AC380V 5A	AC380V 3A	AC380V 5A
Indication way	Digital pipe+LED		LED
Alarm way	---------	7.8 end close switch-on	---------	7.8end close switch-on
Changeability	---------	---------	---------	JD-502

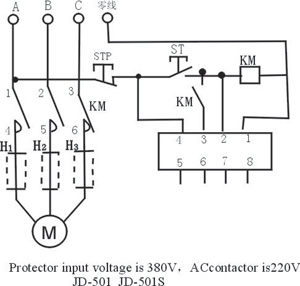

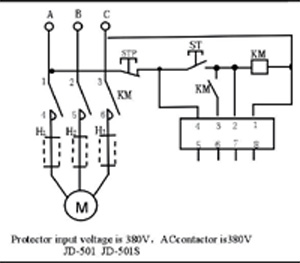

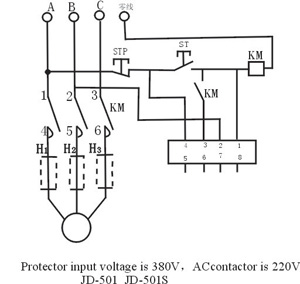

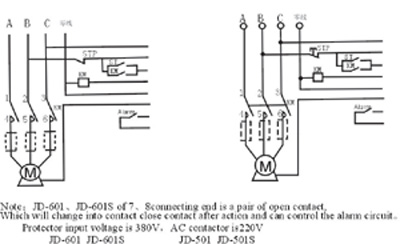

Connecting diagram
