| Application The product is suitable to be used in circuit of rated voltage up to AC 660V 50/60Hz, rated current from 0.1A to 63A. It is applicable for protection of overload & short circuit of three-phase squirrel-cage motors. It also can be used as direct starter to start the motor and as a switch to changeover the circuit under normal conditions. |
| Specification | |||||
|

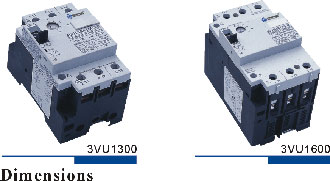

3UV1300
|
3UV1600
|
||||
|
Current setting range(A)
|
Power of controlled motor(KW)
|
Current rated(A)
|
Current setting range(A)
|
Power of controlled motor(KW)
|
Current rated(A)
|
|
0.1-0.16 |
0.16
|
1-1.6
|
0.37/0.55
|
1.6
|
|
|
0.16-0.24
|
0.06
|
0.24
|
1.6-2.4
|
0.75
|
2.4
|
|
0.24-0.4
|
0.09/0.12
|
0.4
|
2.4-4
|
1.1/0.55
|
4
|
|
0.4-0.6
|
0.12/0.18
|
0.6
|
4-6
|
02.2
|
6
|
|
0.6-1
|
0.25
|
1
|
6-10
|
3/4
|
10
|
|
1-1.6
|
0.37/0.55
|
1.6
|
10-16
|
5.5/7.5
|
16
|
|
1.6-2.4
|
0.75
|
2.4
|
16-25
|
11
|
25
|
|
2-3.2
|
1.1
|
3.2
|
22-32
|
15
|
32
|
|
2.4-4
|
1.1/1.5
|
4
|
28-40
|
18.5
|
40
|
|
3.2-5
|
1.5/2.2
|
5
|
36-52
|
22
|
52
|
|
4-6
|
2.2
|
6
|
45-63
|
-
|
63
|
|
5-8
|
3
|
8
|
|||
|
6-10
|
3/4
|
10
|
|||
|
8-13
|
4/4.5
|
13
|
|||
|
10-16
|
7.5
|
16
|
|||
|
14-20
|
7.5
|
20
|
|||
|
18-25
|
11
|
25
|
|||
