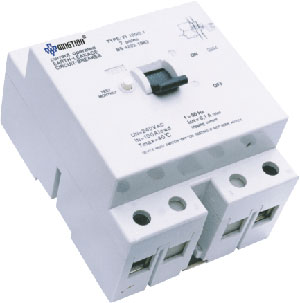

F1-100 Residual Current Device
Application
The products are used in the protection or elec-shock and residual current. They are suitable in circuit AC 50Hz/60Hz, single phase 220V, trip-phase 380V.
F1-100 4P 100A 0.3A
Technical Data
Item
Rated voltage Vn(V)
Rated current In(A)
Number of pole
Rated residual operating I¡÷no(mA)
Rated residual non-operating current I¡÷no(mA)
Rated current off-time
Minimum value of rated making and breaking capacity Im(A)_
Rated conditional short circuit current Inc(A)
Durability of mechanical and electrical (cycle)
Data
220v 380v
100
2,4
100,300
0.5I¡÷n
¡¶0.1I¡÷n
1000
3000
4000
