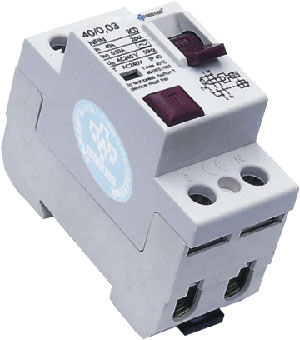

NFIN Residual Current Device(RCD)
NFIN2P 40A 0.03A
NFIN 2P 63A 0.1A

Application

The Residual Current Device(RCD) NFIN is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, hotels and families. It can be used in circuits single phase 240V, three phases 415V, rated frequency 50 or 60Hz. It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. The Residual Current Device (RCD)NFIN is conformity with the standards of IEC1008.1,
GB16916.1.
Specifications
Main Technical Data
Operaring time (second)
I¡÷n
2I¡÷n
0.25A (or 5I¡÷n)
0.2
0.1
0.04
Limited value of non-operating current for balance load or unbalance load
2In
In minimum value of rated making and breaking capacity
In=25
In=40
In=63
200
300
400
Rated conditional short circuit current Inc (A)
1500
2000
3000
Endurance (times)
4000
Type
NFIN25
NFIN40
NFIN63
NFIN100
Rated current In(A)
25
40
63
100
Rated operating current for earth leakage I¡÷n(A)
 0.03,0.1,0.3,0.5
0.1
0.3
0.5
Rated non-operating current for earth leakage I¡÷n(A)
0.5I¡÷n
Voltage Un (V)
240(220) 415(380)
Pole
2,4
Operation Principle
Dimensions
°

Electrical Components Direct
