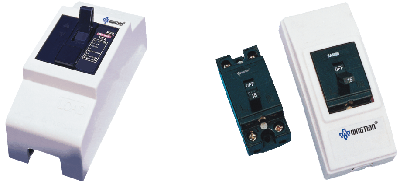

NT-50 Circuit Breaker
The circuit breaker is used as a protection switch for power supplying a circuit with AC 50HZ or 60HZ,voltage 220V,curremt up to 32A.It has inherent overload protection function.Combined with a fuse,it can also provide short circuit protection for a circuit.Besides, it can unfrequently make and break a loaded circuit.It is especiallu suitable for lighting devices in houses and public placed, or a single electric appliance such as refrigerator etc.
Rated Voltage 240V
Rated current:5,10,15,20,25,30A,
Rated capacity of short circuit breaking:1.5KA
