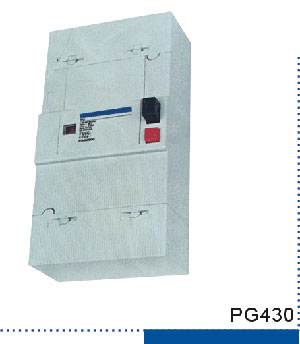

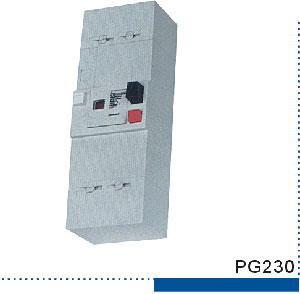

PG230 PG430 Earth Leakage Circuit Breaker

Application

PG230& PG430 breakers are suitable in AC 50Hz, 250/440V circuit with earth leakage protection. The rated current is adjusted from 10A and 60A. User can
select suitable current to better protection against overload and short circuit.

Technical Data

Type
PG230/PG430
Poles
2P,4P,
Rated voltage(V)
250/440,
Rated current(A)
10,15,20,30,45,60A
Leakage motion current(mA)
300mA,500mA
Leakage dead current(mA)
150mA,250mA



°
