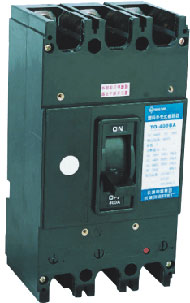

TO TG Moulded Case Circuit Breaker
To-100BA
To-400BA
To-600BA
Application
It is suitable in ship or land, AC 50Hz or 60Hz rated insulating voltage 660V or DC up to 250V circuit for unfrequent on-and-off switching. The circuit breaker has overload and short-circuit protecting devices, can protect cable and circuit form damage as a result of overheat. TO is standard type. TG is high breaking capacity type.
Technical Data
Type
Rated current (A)
Rated current of circuit Breaker (A)
Short circuit breaking capacity(KA)
Life(Times)
Connection method
380V
440V
TO
400
15,20,30,40,50,60,75,100
22
18
10000
Front Behind Insert
225
125,150,175,200,225
25
20
8000
400
250,300,350,400
35
30
5000
600
450,500,600
40
30
5000
TG
30
15,20,30
35
30
10000
Front Behind Insert
100
15,20,30,40,50,60,75,100
40
35
5000
225
125,150,175,200,225
42
35
5000
400
250,300,350,400
42
35
5000
600
450,500,600
50
40
5000
