YC60 Mini Circuit Breaker

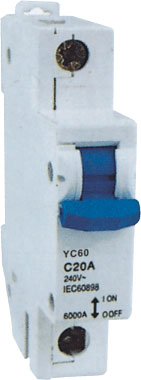

YC60 1P
YC60 2P
YC60 3P
Application
Protect and control of circuit against overload and short circuit in building installation, such ashouses, offices, commercial complex, motor system(D curve)and industrial installation, for switching, controlling, protecting and regulating of electrical circuits, and in switchgear panels, railway and marine application.
Technical Data
Standard: IEC60898
Rated current(In): up to 40A
Rated Voltage(Un):230/400V AC
Breaking capacity:
Tripping characteristics: IEC60898
B curve: the magnetic releases operate between 3 and 5In
C curve: the magnetic releases operate between 5 and 10In
D curve: the magnetic releases operate between 10 and 14In
Electrical endurance:
Connection capacity: Rigid conductor 25mm2 Flexible conductor 16mm2

Installation
On symmetrical DIN rail 35mm2
Panel mounting
Rated current (A)
Pole No
Rated voltage (V)
Breaking capacity (A)
Cyeles
Frequency (cycles/hour)
Rated current (A)
1-40
1,2,3,4
230/240
6000
6000
120
1-40
