YCB2-63£¨C60£İMini Circuit Breaker
Application

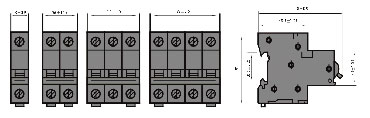

YCB2-63 1P
YCB2-63 2P
YCB2-63 3P
YCB2-63 4P


YCB2-63 mini circuit breaker belongs to the advanced level of the nineties in the international instead of the old generation of C45N. And they also have many merits of high protective grade (up to IP20), high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life etc. They are mainly
used for overload and short circuit protection within the circuit of AC 50Hz, 230V in single pole, 400V in double, three & four poles of lighting distribution system in industry &
commerce. Meanwhile, they are also used in turning on & off the electric apparatus and lighting circuit under the normal condition.

Specifications
Curve
Standard
Rated current (A)
Poles (P)
Rated Voltage (V)
Breaking capacity (A)
B C D
IEC60898
1,2,3,4,5,6, 10,16,20,25, 32,40,50,63A
1
230/240
6000
2,3,4
400/415
6000
Characteristic Curve
°
