YCB3 Circuit Breaker
YCB3-1(DZ30)

YCB3-2(DZ60)

Application Technical Data

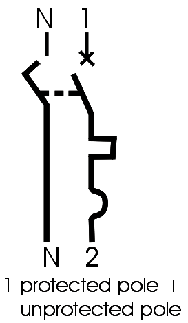

YCB3(DPN) is applicable to protect line-conductor against overload, and short circuit of small sealed motors. It is main for protection of circuits with AC 220V and 50Hz/60Hz, and for unfrequent conversion under normal conditions as well. Its action can be up to two poles with its only one pole volume and be used as a leakage breaker by assembling with leakage.
It is produced as IEC60898. 		1. Current rating: 1,2,3,4,6,10,16,20,25,32A at 30¡æ£»
2. Voltage rating: 220/240V AC;
3. Breaking capacity to IEC 60898: 4500A
4. Number of operating cycles(O-C): 20000
5. Tripping characteristics:
B curve: the magnetic release operate between 3 and 5 In,
C curve: the magnetic release operate between 5 and 10 In.

Dimensions
