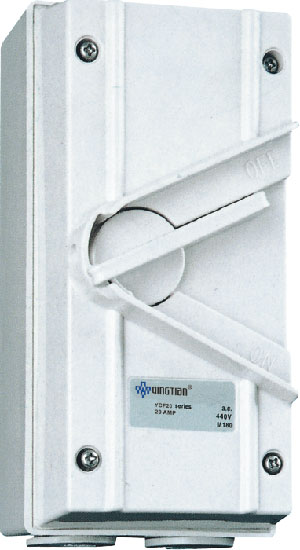

YCF203563 Weather Protected Isolating switch
YCF20
For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moused barriers protect the operating lever from physical abuse or accidental switching.
Standard colours are Grey &white.
Products Available

IP Rating
YCF1-20
20A 250V Single pole surface switch.
Terminals accommodate 16mm2 cable
M Rating 220
56

YCF1-35

YCF1-63

35A/63A 250V Single pole.
Terminals accommodate 16mm2 cable
M Rating 220
56
Application
The YCF Series of Weather Protected Isolating Switch is a robust range of switches suitable for virtually any external application.
Included in the range of single, double and triple poles swi-tches from 20 to 80 Amps. The base mounted mechanism provides for easier termination and more wiring room. Switch dimensions are 165mm82mm with a whole height of 85mm.
Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths and secure clamping for all cables. Terminal bore size is 5mm6.6mm.
A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
Dual 25mm screwed conduit entries top and bottom(up to 55 amp)allows four ways to surface wire the switch 55amp. And above are also available with 32mm entries top and bottom.
Each units supplied with screwed conduit plugs and screwed
reducers for easy connection to 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP rating.
The Impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with one piece weather seal gasket.
Products Available-Double Ploe
IP Rating
YCF2-20
20A 440V Double pole Terminals
accommodate 16mm2 cable
M Rating 180
56
YCF2-35
35A 440V Double pole.
Terminals accommodate 16mm2 cable
M Rating 180
56
YCF2-56
63A 440V Double pole.
Terminals accommodate 25mm2 cable
M Rating 160
56
Products Available
IP Rating
YCF3-20
20A 440V Triple pole
Terminals accommodate 16mm2 cable.
M Rating 180
56
YCF3-35
35A 440V Triple pole.
Terminals accommodate 16mm2 cable.
M Rating 180
56
YCF3-55
55A 440V Triple pole.
Terminals accommodate 16mm2 cable.
M Rating 160
56
YCF3-35/32
55A 440V Triple pole with 32mm conduit entry
at each end. Terminals accommodate 25mm2
cables. M Rating 160
56
YCF3-63
63A 440V Triple pole with 32mm conduit entry
at each end. Terminals accommodate 25mm2
cables. M Rating 160
56
YCF3-80
80A 440V Triple pole with 32mm conduit entry
at each end. Terminals accommodate 25mm2
cables. M Rating 150
56
