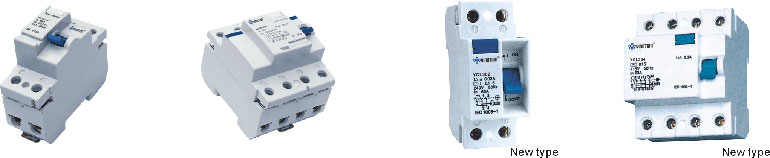

YCL360 Residual Current Circuit Breaker(RCCB)
YCL362-63A0.03A
YCL364-63A0.03A
YCL-362
YCL-364

Application

The item is in accordance with standards of IEC1008-1 and GB16916.1-1997, applying to the circuit of AC 50/60Hz, 240V single phase,415V three phases or below it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrified wire net, this RCCB is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won,t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential value of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act
and cut off so that the item will take effect of protection.

Specifications:
Type
Rated current
Leakage acting current
Range of break-off
Rated voltage
YCL362
16A
10mA
I0.5~1.0In
240V(220)
25A
32A
30mA
40A
100mA
63A
300mA
YCL364
25A
30mA
0.5~1.0In
240V/415V
32A
40A
100mA
(220V/380V)
63A
300mA

Technical Data


Tripping time:100ms(depending on specifications 5In40ms)
Ambient temperature:-55VC+55C
Climatic resistance:550C/28 cycles
Vibration resistance: Minimum 5g 30min.
Life expectance: At least 10,000 operations
Technical Data

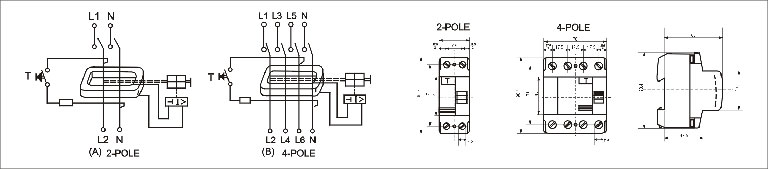

Operation principle


Electrical Components Direct
