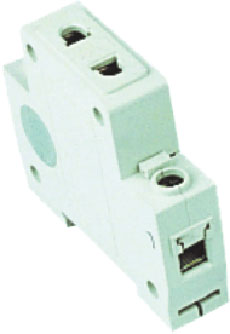

AC30 Series Outlet


AC-30 outlets are applied in the circuit of AC 50Hz/60Hz, rated voltage 220V/380V rated working current 25A or below it. Theyare mainly used for the necessary unit of indoors model digital and composed electric equipments. They are applied in all kinds ofpower appliances, singleˇ˘double-poles, single-phrase and three-phrase four poles.

Technical Data
Rated valtage current
Operating life
Single phrase
220V/10 16A
AC30-10/2 10/3 16/4 5000 times
Three phrases
380V/10 25A
AC30-25/4 2500 times
