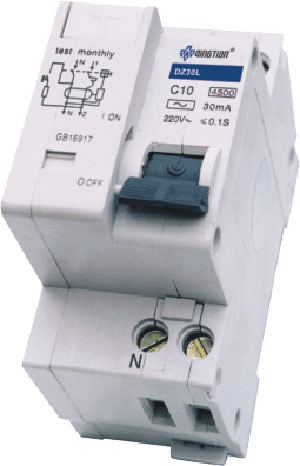

DZ 30LE Earth Leakage Circuit Breaker

DZ30LE

Overload Trip Charcteristic

Testing current(A)	Limited time	Pre-engage result	Short situation	Note
1.131n	t≥1h	non-trip	cold state	The current rise steadly to a fixed value within 5s
1.451n	t<1h	trip	heat state	The current rise steadly to a fixed value within 5s
2.251n	1s<t<60s	trip	cold state	Open the supplementary switch,connect the power
51n	t≥0.1s	non-trip	cold state	Open the supplementary switch,connect the power
101n	t<0.1s	trip	cold state	Open the supplementary switch,connect the power

Rated current(A)	Pole	Rated voltaged(V)	Rated current of frame current(A)	Rated leakage operating current(mA)	Rated leakage operating current(mA)	Rated leakage breaking time(s)	Breaking capacity(A)
6,10,16,20,25,32	IP+N	220	32	30	15	≤0.1s	4500

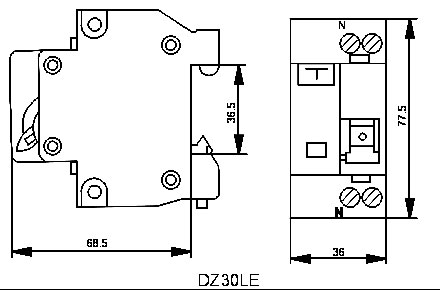

Dimensions
