K Mini Circuit Breaker

Application
K mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce. It has pleasing out-look, light weight, reliable performance, high breaking capacity, etc. Its frame and parts adopt plastics of high inflammable resistance and shock resistance for long service life. It is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole 240V, two, three or four pole up to 415V. It can also be used for unfrequently switch-over of the circuit and illumination under normal conditions.
Specifications
K 1P

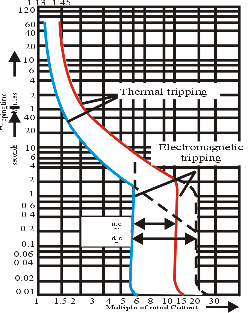

Charcateristic Curve
Frequency
50/60Hz
Rated voltage
240/415V AC
Rated breaking capacity
3000A
Rared trip current (A)
2,4,6,10,16,20,25,32,40,50,63
No.of Pole
1,2,3

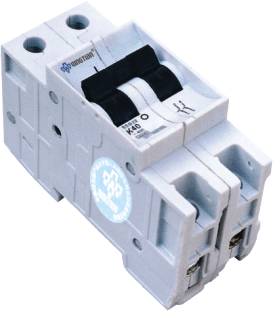

K 2P
K 3P
