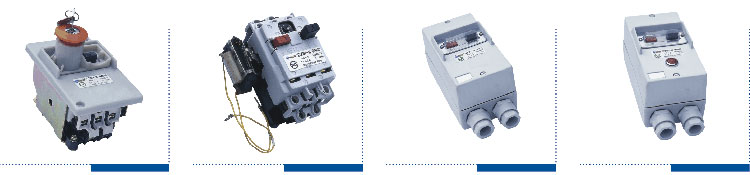

| M611
Motor Protection Circuit Breaker |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| This product
is suitable for using in circuit the rated voltage up to AC 660V or
440V and current 0.1 to 16A. It can be used for protection of overload
and short circuit of 3phase squirrel-cage motors, and starters of
motors as well at full voltage. It is suitable to use to protect the
motor with under voltage trip. It can also be used in operating AC
single phase load and DC load. Itcan monitor the fuse of switch disconnector
to act as protection of phase failure.This product includes basic
type switch and 26 accessories with purposes of expanding usage. It
complies with standards of IEC157-1. |
|
|
| Specifications |
|
Rated current for trip(A)
|
0.16
|
0.25
|
0.40
|
0.63
|
1.0
|
1.6
|
2.5
|
4.0
|
6.3
|
10
|
16
|
|
Rated of fixed current(A)
|
0.1กซ0.16
|
0.16กซ0.25
|
0.25กซ0.40
|
0.40กซ0.63
|
0.63กซ1.0
|
1.0กซ1.6
|
1.6กซ2.5
|
2.5กซ4.0
|
4.0กซ6.3
|
6.3กซ10
|
9.5กซ16
|
|
Code
|
05
|
09
|
13
|
17
|
21
|
25
|
29
|
33
|
37
|
42
|
46
|
|
|
|
|
 |
|
|
