Coils For Contactors
A.C.Standard control circuit voltages and it is suitable for using in coils of Lx1
Specifications
Volts
12
24
36
42
48
110
127
220
230
240
380
400
415
440
500
660
50Hz
15
B5
C5
D5
E5
F5
G5
M5
P5
U5
Q5
V5
N5
R5
S5
Y5
60Hz
-
B6
-
D6
E6
F6
-
M6
-
U6
Q6
-
-
R6
-
-
50/60Hz
-
B7
-
D7
E7
F7
-
M7
P7
U7
Q7
V7
N7
R7
-
-
D.C.Standard control circuit voltages and it is suitable for using in coils of Lx4
Specifications
Volts
12
24
36
48
60
72
110
125
220
250
440
600
U0.8бн1.1UC
JD
BD
CD
ED
ND
SD
FD
GD
MD
UD
RD
XD
U0.7бн1.25UC
JW
BW
CW
EW
-
SWA
-
-
MW
-
-
-
Replacement coils unit reference ,it's suitable for the contactor coils of TE
Specifications
It is used for CJX2-K06-09 JZC4-K(LC1-K)
AC
LX1-K
It is used for CJX2-EC,EE JZC4-EN(LC1-E)
AC
LX1-EC

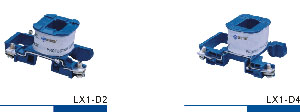

It is used for CJX2-09,12,18 JZC4-DN(LC1-D)
AC
LX1-D2
It is used for CJX2-25,32(LC1-D)
AC
LX1-D4

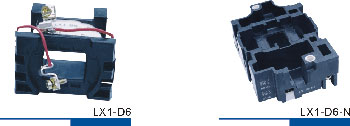

It is used for CJX2-40,50,65,80,95(LC1-D)
AC
LX1-D6
It is used for CJX2-K06Z,K09Z,JZC4-KNZ(LP1-K)
DC
LX1-K
It is used for CJX2-ECZ,EEZ,JZC4-DZ(LP1-E)
DC
LX1-EC

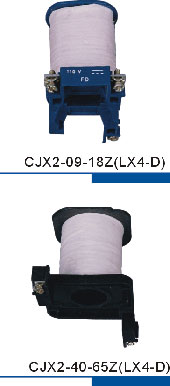

It is used for CJX2-09-18Z,JZC-DZ(LP1-D)
DC
LX1-D2
It is used for CJX2-25Z,32Z(LP1-D)
DC
LX1-D4
It is used for CJX2-40Z,50Z,65Z(LP1-D)
DC
LX1-D6
It is used for CJX2-80Z,95Z(LP1-D)
DC
LX1-D7

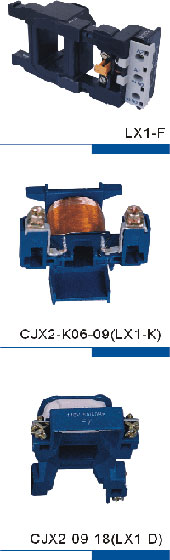

It is used for CJX2-F115,F150V(LC1-F)
AC
LX1-F115
It is used for CJX2-F185,F225(LC1-F)
AC
LX1-F185
It is used for CJX2-265,F330(LC1-F)
AC
LX1-F265
It is used for CJX2-F400(LC1-F)
AC
LX1-F400
It is used for CJX2-F500(LC1-F)
AC
LX1-F500
It is used for CJX2-F630(LC1-F)
AC
LX1-F630
