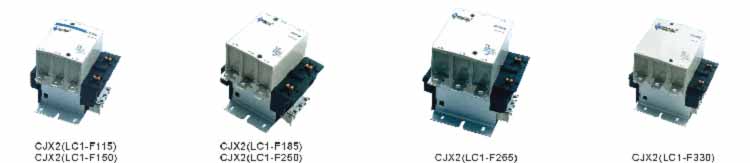

| CJX2(LC1-F)AC Contactor |
 |
|
| Application CJX2 series AC Contactor is applicable in the circuit rated voltage up to 1000V AC. 50Hz or 60Hz,rated current up to 780A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distributing circuits of rated current from 200A to 1600A. |
|
Type
|
CJX2 LC1-F115 | CJX2 LC1-F150 | CJX2 LC1-F185 | CJX2 LC1-F225 | CJX2 LC1-F265 | CJX2 LC1-F330 | CJX2 LC1-F400 | CJX2 LC1-F500 | CJX2 LC1-F630 | CJX2 LC1-F780 | |
|
Rated operation current(A)
|
AC-3
|
115
|
150
|
185
|
225
|
265
|
330
|
400
|
500
|
630
|
780
|
|
AC-1
|
200
|
250
|
275
|
315
|
350
|
400
|
500
|
700
|
1000
|
1600
|
|
|
Standard power ratings of 3-phase
motors AC-3(KW)
|
220/230V
|
30
|
40
|
55
|
63
|
75
|
100
|
110
|
147
|
200
|
220
|
|
380/440V
|
55
|
75
|
90
|
110
|
132
|
160
|
200
|
250
|
335
|
400
|
|
|
415V
|
59
|
80
|
100
|
110
|
140
|
180
|
200
|
280
|
375
|
425
|
|
|
440V
|
59
|
80
|
100
|
110
|
140
|
200
|
250
|
295
|
400
|
425
|
|
|
500V
|
75
|
90
|
110
|
129
|
160
|
200
|
257
|
355
|
400
|
450
|
|
|
660/690V
|
80
|
100
|
110
|
129
|
160
|
200
|
280
|
335
|
450
|
475
|
|
|
1000V
|
65
|
65
|
100
|
100
|
147
|
160
|
185
|
335
|
450
|
450
|
|
