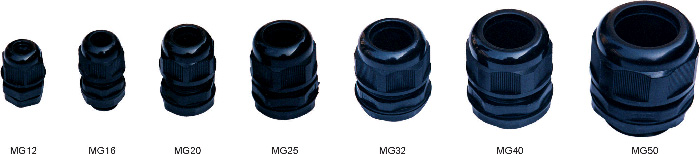

MG NEW Type Water-resistant Junction
Application
This product is to fix cables and provide effective protection against dust and water from entering electrical distribution board. Electromechanical controlling board and other
instruments.
Features
¡öInnovative design for seal and claw resulting in wide cable range, strong resistance against pulling force and thus effectively protect cables.
¡öThis product provides effective protection against water and dust.
Technical Data
¡öThreaded entry: Metric

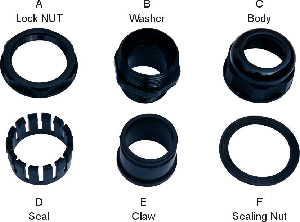

¡öMaterial: parts A. C. E. F. Are made of nylon 66 characterised by high fire resistant with its flame rating UL 94V-2, parts B and D are made of EPDM neoprene.
¡öColour: black and grey
¡öWorking temperature:-400C-1000C, the item can also endure 1200C instantly
¡öProtection degree: IP68
¡öStandard:IEC698
Installation: directly screw into hole of same thread size or fix with the spare locknut, with cable through
¡öIt¡¯s inside hole, seal the sealing nut.
Unit:mm
Category No.
Seal holes
Threaded entry metric
Cable range ¦µ
Threaded
O.D.
C1
Panel mounting Hole
Thread
length
C2
Sealing not
size
F
Lock nut
size
A
Black
Grey
MG12-08B
MG12-08G
M12¡Á12.5
7.6¡«4.6
12
12.5
8.5
19
18
MG16-10B
MG16-10G
M16¡Á1.5
10¡«6
16
16.5
15
22
22
MG20-14B
MG20-14G
M20¡Á1.5
14¡«9
20
20.5
15
27
27
MG25-18B
MG25-18G
M25¡Á1.5
18¡«13
25
25.5
15
33
33
MG32-25B
MG32-25G
M32¡Á1.5
25¡«18
32
33
15
41
41
MG40-30B
MG40-30G
M40¡Á1.5
30¡«24
40
41
20
50
50
MG50-39B
MG50-39G
M50¡Á1.5
39¡«30
50
51
22
62
61
MG63-49B
MG63-49G
M63¡Á1.5
48.5¡«40
63
64
25
75
75
