Terminal Connector

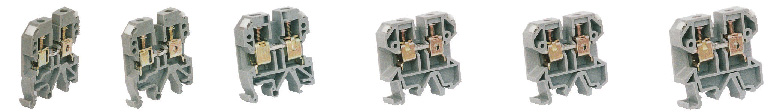

JXB-2.5/35 JXB-4/35 JXB-10/35 JXB-16/35 JXB-35/35 JXB-70/35
JXB
JB-4/35
JB-6/35
JB-10/35
JB-16/35 JB-35/35
Specifications
Terminal connnector

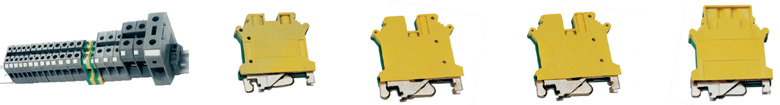

JXB-2.5/35
JXB-4/35
JXB-6/35
JXB-10/35
JXB-16/35
JXB-35/35
JXB-70/35
JXB-100/35
Earth connector
JB-2.5/35
JB-4/35
JB-6/35
JB-10/35
JB-16/35
JB-35/35
Application
H.F.W. series terminal connectors are used in the circuits of AC. 50Hz or 60Hz, voltage up to 660V or DC. voltage up to 440V current from 3A to 150A, for connecting the round copper conductors.
Specifications
Area(mm2)
4
6
10
12
14
20
25
30
35
40
Current
3A
6A
10A
15A
20A
30A
60A
80A
100A
150A
Specifications
Type
Current
No.of poles

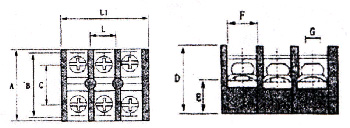

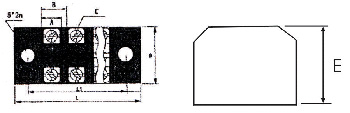

Dimensions(mm)
L
L1
A
B
C
D
E
TB-1503
15A
3
46
36.5
7.5
9
M3
22
17
TB-1504
4
55
45.5
7.5
9
M3
22
17
TB-1506
6
73
63.5
7.5
9
M3
22
17
TB-1512
12
127
118
7.5
9
M3
22
17
TB-2503
25A
3
50
40
10.5
12
M4
30
20
TB-2504
4
62.5
57
10.5
12
M4
30
20
TB-2506
6
91
81.5
10.5
12
M4
30
20
TB-2512
12
163
153
10.5
12
M4
30
20
TB-3503
35A
3
50
40
10.5
12
M4
30
20
TB-3504
4
62.5
57
10.5
12
M4
30
20
TB-3506
6
91
81.5
10.5
12
M4
30
20
TB-3512
12
163
153
10.5
12
M4
30
20
TB-4503
45A
3
70
60.5
15
17
M5
38
23.5
TB-4504
4
86
75.5
15
17
M5
38
23.5
TB-4506
6
120.5
110
15
17
M5
38
23.5
TB-6003
60A
3
70.5
65.5
15.5
18
M6
38
31
TB-6004
4
93.5
82.5
15.5
18
M6
38
31
TB-6006
6
129
118
15.5
18
M6
38
31
TB-1003
100A
3
86.5
75.5
22
20
M6
43.5
35
TB-1004
4
108
96
22
20
M6
43.5
35
TB-1006
6
153
140
22
20
M6
43.5
35
Specifications
Type
Current
No.of poles

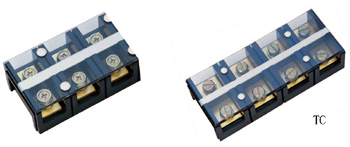

Dimensions(mm)
L
L1
A
B
C
D
E
F
G
TC-603
60A
3
28.5
86.5
38
42.7
25.5
31
15
17
M6
TC-604
4
28.5
115
38
42.7
25.5
31
15
17
M6
TC-1003
100A
3
34.5
113.5
46.5
55.2
28
36.3
17.3
22.5
M6
TC-1004
4
34.5
137.5
46.5
55.2
28
36.3
17.3
22.5
M6
TC-1503
150A
3
38.5
115
57.2
67
30.5
40
19.8
25.3
M8
TC-1504
4
38.5
153
57.2
67
30.5
40
19.8
25.3
M8
TC-2003
200A
3
44.5
133
63
72.1
34
44.4
23
28.3
M8
TC-2004
4
44.5
177
63
72.1
34
44.4
23
28.3
M8
TC-3003
300A
3
55
164
78
89.4
47.5
50.6
27
30
M10
TC-3004
4
55
218
78
89.4
47.5
50.6
27
30
M10
TC-4003
400A
3
55
164
78
89.4
47.5
50.6
27
36
M10
TC-4004
4
55
218
78
89.4
47.5
50.6
27
36
M10
Type
Rated voltage
Rated Current
Dielectric strength
Insulation Resistace
Applicable wire
Circuits Poles
IN12BK-C
600V
20A
2500V,1MIN
100M次,MIN
2mm2MAX
3 Poles
IN3SBK-C
600V
20A
2500V,1MIN
100M次,MIN
2mm2MAX
3 Poles
IN20BK-C
600V
30A
2500V,1MIN
100M次,MIN
3.5mm2MAX
3 Poles
IN30BK-C
600V
50A
2500V,1MIN
100M次,MIN
8mm2MAX
3 Poles
IN411SB-C
600V
60A
2500V,1MIN
100M次,MIN
14mm2MAX
1 Pole
IN60BK-C
600V
90A
2500V,1MIN
100M次,MIN
22mm2MAX
1 Pole
IN100BK-C
600V
130A
2500V,1MIN
100M次,MIN
38mm2MAX
1 Pole
IN200BK-C
600V
240A
2500V,1MIN
100M次,MIN
100mm2MAX
1 Pole
IN400BK-C
600V
370A
2500V,1MIN
100M次,MIN
200mm2MAX
1 Pole
