RT18-32 1P
|
|
RT18-32 2P
|
|
|
RT18-32 3P
|
|
RT18-32X 1P
|
|
RT18-32X 2P
|
|
RT18-32X 3P
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application
RT 18 type (or HG30) fusing isolator is used
in distribution units with rated voltage 220/380V, rated current
to 63A, and serves as protection for overloading & short circuit.
Neon light & resistance form isolator for fusing signal unit
of fuse body (¡°¡Á¡±) |
|
|
|
|
|
|
|
|
|
|
RT18-63X 1P
|
|
RT18-63X 2P
|
|
|
RT18-63X 2P
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
|
|
|
|
|
Type
|
Rated current for fuse body(A)
|
Size
|
W.T.(kg)
|
|
A
|
B
|
D
|
E
|
F
|
|
RT18-32
|
2,4,6,10,16,20
|
82
|
78
|
60
|
77
|
18
|
0.075
|
|
RT18-32¡Á
|
25,32
|
|
RT18-63
|
2,4,6,10,16,20
|
106
|
103
|
80
|
110
|
26
|
0.18
|
|
RT18-63¡Á
|
25,32,40,50,63
|
|
|
|
|
|
|
|
|
Model
|
Rated current(A)
|
Rated voltage(V)
|
Consumption(W)
|
W.T.(kg)
|
|
|
2,4,6,10,16,20
25,32
|
500
|
<=5
|
0.009
|
|
|
1,2,3,4,5,6,8,10,12,
16,24,25,30,32,40
|
500
|
<=3
|
0.002
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application

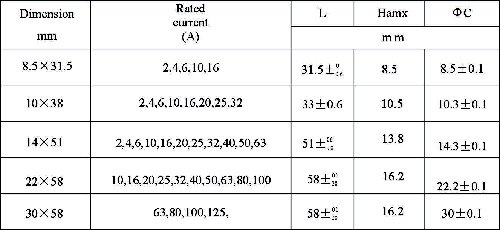

The fuses with fuse links having cylindrical
contact caps are designed for protecting electrical distributing
installations of rated voltage of 380V AC, with rated current
up to 125A against damage due to overload and short circuit
current.
Fuse links with the striker are supplied for the purpose of
protecting motors against motor single phase operation when
fitted in fuse isolators. |
|
Specifications
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model
|
Rl-16ND
|
RL6-25
|
RL6-63
|
|
Rated voltage
|
500V
|
500V
|
500V
|
|
Rated current of fuse
|
25A
|
25A
|
63A
|
|
Rated current of fusant
|
1,2,4,6,10A
|
2,4,6,10,20,25A
|
35,50,63A
|
|
Rated breaking current
|
|
|
|
|
Overall dimensions
|
35X35X70mm
|
66X43X80mm
|
89X54X82mm
|
|
Weight
|
0.15kg
|
0.20kg
|
0.35kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
