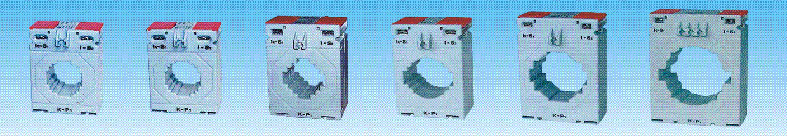

YCP Series Current Transformer
YCP62/30
YCP62/40
YCP74/40
YCP74/50
 YCP86/60 YCP104/80
Technical Data
Model
Rated Current(A) Primary/Secondary
Rated Burden(VA)
Accuracy Class
Rated voltage
Rated Frequency
YCP-62/30
50/5A-300/5A
1.5-5
1.0-0.5
720V
50/60HZ
YCP-62/40
150/5A-800/5A
2.5-10
1.0-0.5
720V
50/60HZ
YCP-74/40
150/5A-800/5A
2.5-10
1.0-0.5
720V
50/60HZ
YCP-74/50
250/5A-100/5A
5-10
1.0-0.5
720V
50/60HZ
YCP-86/50
250/5A-100/5A
5-15
1.0-0.5
720V
50/60HZ
YCP-104/80
100/5A-3000/5A
5-15
1.0-0.5
720V
50/60HZ
Dimensions
Model A B C D E F G H I J K L M N O P
YCP-62/30 78 47 6.6 35 57 71 30.5 33 11 26 31 44 62 11 21 26
YCP-62/40 78 47 6.6 35 57 71 31 33 16 31 40.5 44 62 11 21 31
YCP-74/40 98 61 6.6 45 67 81 33 42 13.5 21 31 47 74 13.5 21 41
YCP-74/50 98 61 6.6 45 67 81 41 42 31 41 47 51 74 12.5 21 31
YCP-86/50 110 56 6.6 40 62 76 51 49 21 51 61 68 86 12.5 31 51
YCP-104/80 126 56 6.6 40 62 76 65 57 31 51 81 86 104 12.5 31 61
