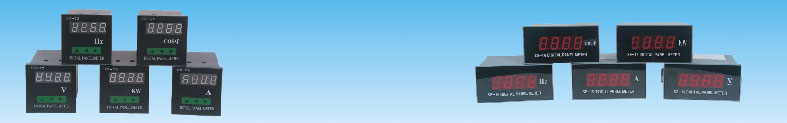

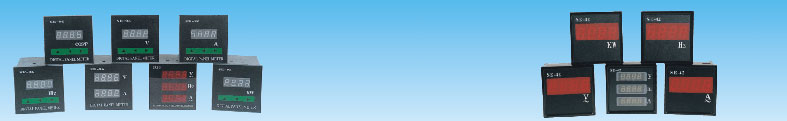

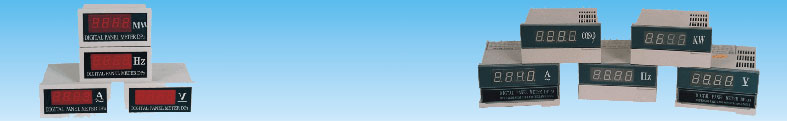

| Digital panel meter which
is various and artistic in appearance design is used for dual slope,
high precise A/D changeover circuit and high light LED cassette setting
specification. It is very convenient for user to fix the equipment. |
|
|
|
| YCSE-96 96〜96〜120mm |
YCSE-42 120〜120〜95mm
|
|
|
|
| YCSE-72 72〜72〜120mm |
YCSE-16 160〜80〜120mm |
|
|
|
| YCSE-DP3 96〜48〜96mm |
YCSE-DP-35 96〜48〜112mm |
|
| Specifications |
|
Description
|
Direct input range
|
Input current range
|
Operation voltage
|
Display range
|
Class
|
|
AC&DC digital voltage meter
|
AC DC 0-100V
|
-
|
AC 220V 50/60HZ
|
0-1999
|
0.5
|
|
AC&DC digital Amper meter
|
AC 10-20A DC 0-10A
|
-
|
AC 220V 50/60HZ
|
0-1999
|
0.5
|
|
Frequency digital meter
|
AC 10-2KHZ(20-300V)
|
-
|
AC 220V 50/60HZ
|
0-1999
|
0.5
|
|
AC TRI-Phase watt meter
|
AC 0-100V
|
AC 5A
|
AC 380V 50/60HZ
|
0-1999
|
-
|
|
AC 110V 50/60HZ
|
|
AC single-phase watt meter
|
AC 0-220V
|
AC 10-5A
|
AC 220V 50/60HZ
|
0-1999
|
-
|
|
AC 110V 50/60HZ
|
|
AC single-phase factor meter
|
AC 100-300V
|
AC 5A
|
AC 220V 50/60HZ
|
0-1999
|
-
|
|
|
