LR2 Thermal Relayy

Application
This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93Afor protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature
compensation, and it can be plugged in LC1-D series ACC ontactor. At present, it is the most advanced thermal relay in the world.
Specifications
Type
Rated working current of thermal relay

Thermal component

Rated Current (A)
Regular of scale of rated current (A)
LR2-D13
25
LR2-D1301
0.16
0.10-0.16
1302
0.25
0.16-0.25
1303
0.40
0.25-0.40
1304
0.63
0.40-0.63
1305
1.0
0.63-1.0
1306
1.6
1.0-1.6
13X6
2.0
1.25-2.0
1307
2.5
1.6-2.5
1308
4.0
2.5-4.0
1310
6.0
4.0-6.0
1312
8.0
5.5-8.0
1314
10.0
7.0-10.0
1316
13.0
9.0-13.0
1321
18.0
12.0-18.0
1322
25.0
17.0-25.0
LR2-D23
36
LR2-D2353
32
23.0-32.0
2355
36
28.0-36.0
LR2-D33
93
LR2-D3353
32
23.0-32.0
3355
40
30.0-40.0
3357
50
37.0-50.0
3359
65
48.0-65.0
3361
70
55.0-70.0
3363
80
63.0-80.0
3365
93
80.0-93.0

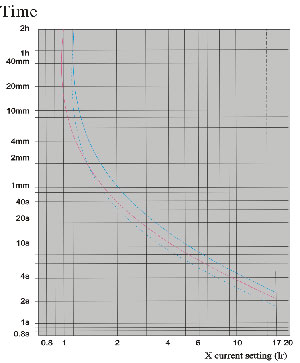

Characteristics
a. Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25, 36, 93A separately
(c).The regulator seal of rated setting current.
(D).Current of the thermal component(see list 1)
b. Auxiliary Circuit
(a).There are one pair of N/O and N/C contract with electric insulation
(b).Rated insulation Voltage 500V.
(C). Rated frequency 50-60Hz.
(D).Use group, rated working voltage,
appoint thermal current and rated current.
Use Group
ACLL
DCLL
Rated working voltage V
220
380
500
220
110
Rated working current A
4
3
3
0.1
0.22
Appointed thremal current A
5
Dimensions
Outline and installation dimensions for LR2-D13 type thermal relay
Outline and installation dimensions for LR2-D22 type thermal relay
Outline and installation dimensions for LR2-D33 type thermal relay
