PCB & Air Conditioning Relay
Specifications
Model Weight Contact Capacity Coil Nominal voltage Coil Nominal Power Insulation Resistance Contact Resistance Dielectric Strength Life Expecatncy(ops)Electrical Mechanical Operating Temperature

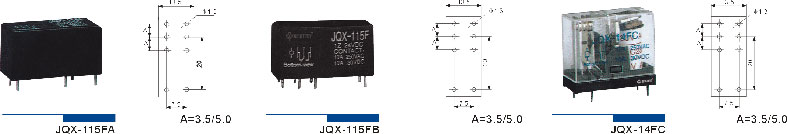

JQX-115FA ≒11g 1Z 16A 250VAC 2Z 5A 250VAC DC 3V to 110V DC≒0.53W ≡1000m次 ≒100m次 BOC 1000VAC BCC 5000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
JQX-115FB ≒11g 1Z 10A 250VAC 2Z 5A 250VAC DC 3V to 110V DC≒0.53W ≡1000m次 ≒100m次 BOC 1000VAC BCC 5000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
JQX-14FC ≒18g 1Z 10A 250VAC 2Z 5A 250VAC DC 3V to 110V AC6V to 220V DC≒0.53W AC≒0.9VA ≡1000m次 ≒100m次 BOC 1000VAC BCC 5000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥

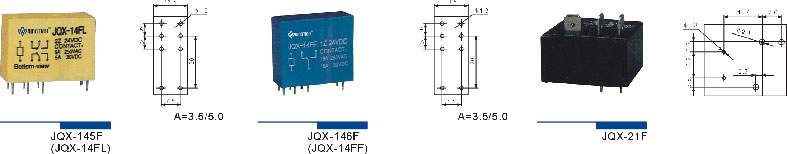

JQX-145F(JQX-14FF) ≒15g 1Z 16A 250VAC 2Z 5A 250VAC DC 3V to 110V AC6V to 220V DC≒0.53W AC≒0.9VA ≡1000m次 ≒100m次 BOC 1000VAC BCC 5000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
JQX-146F(JQX-14FL) ≒19g 1Z 16A 250VAC 2Z 5A 250VAC DC 3V to 110V AC6V to 220V DC≒0.53W AC≒0.9VA ≡1000m次 ≒100m次 BOC 1000VAC BCC 5000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
JQX-21F ≒35g 10A 240VAC 20A 240VAC DC 3V to 48V DC≒0.9W ≡1000m次 ≒100m次 BOC 1500VAC BCC 2500VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥

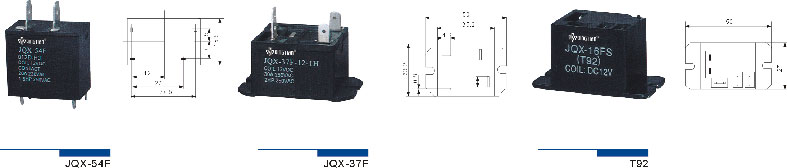

JQX-54F ≒42g 20A 250VAC DC 3V to 48V DC≒0.9W ≡1000m次 ≒100m次 BOC 1000VAC BCC 2000VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
JQX-37F ≒55g 30A 250VAC DC 3V to 48V DC≒1.2W ≡1000m次 ≒100m次 BOC 1200VAC BCC 4000VAC Ele 100,000 Me 10,000,000 -40⊥ to 50⊥
T92 ≒35g 20A 220VAC 30A 125VAC DC 3V to 48V DC≒0.9W ≡1000m次 ≒100m次 BOC 1000VAC BCC 1500VAC Ele 100,000 Me 10,000,000 -40⊥ to 70⊥
