PCB Relay
Specifications
Model Weight Contact Capacity Coil Nominal voltage Coil Nominal Power Insulation Resistance Contact Resistance Dielectric Strength Life Expecatncy(ops) Electrical Mechanical Operating Temperature
WYLJQ-401 ≒35g 22A 6VDC DC6V to 24V DC≒1.8W ≡100M次 ≒50m次 BOC 500VAC Ele 100,000 -40⊥ to 70⊥
22A 12VDC
22A 24VDC BCC750VAC Me10,000,000
MYLJQ-402 ≒40g 22A 6VDC DC6V to 24V DC≒1.8W ≡100M次 ≒50m次 BOC 500VAC Ele 100,000    -40⊥ to 70⊥
22A 12VDC
22A 24VDC BCC750VAC Me10,000,000

WYLJQ-403

(CM6331)

 ≒45g 20A 12VDC DC6V to 24V DC≒1.6W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 Ele 100,000   -40⊥ to 70⊥
30A 12VDC Me10,000,000
WYLJQ-404 (CM6321) ≒60g 20A 12VDC DC6V to 24V DC≒1.6W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 Ele 100,000   -40⊥ to 70⊥
30A 12VDC Me10,000,000
WYLJQ-405 (CM6331) ≒30g 22A 12VDC DC3V to 24V DC≒1.6W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 Ele 100,000 -40⊥ to 120⊥
Me10,000,000
4117 ≒12g 10A 15VDC DC3V to 24V DC≒1.1W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 Ele 100,000   -40⊥ to 70⊥
Me10,000,000
RL15 ≒40g 20A 14VDC DC3V to 24V DC≒1.6W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 		 Ele 100,000    -40⊥ to 70⊥
30A 14VDC  Me10,000,000
40A 14VDC
JD1929 ≒35g 20A 14VDC DC3V to 24V DC≒1.6W ≡100M次 ≒50m次

BOC 500VAC

BCC 750VAC

 Ele 100,000   -40⊥ to 70⊥
30A 14VDC Me10,000,000
Specifications
Model Weight Contact Capacity Coil Nominal voltage Coil Nominal Power Insulation Resistance Contact Resistance Dielectric Strength Life Expecatncy(ops)Electrical Mechanical Operating Temperature

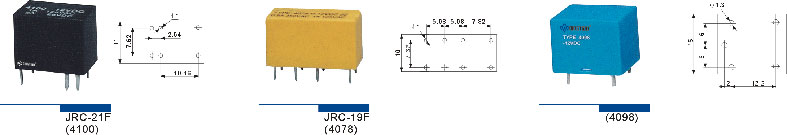

JRC-21F(4100) ≒4g 1.0A 125VAC 0.5A 250VAC DC 3V to 24V DC0.2Wto0.45W ≡100m次 ≒100m次 BOC 500VAC BCC 1000VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
JRC-19F(4078) ≒6g 1.0A 125VAC 0.5A 250VAC DC 3V to 24V DC0.15Wto0.5W ≡100m次 ≒100m次 BOC 500VAC BCC 1000VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
4098 ≒9g 2A 125VAC 2A 28VDC DC 3V to 24V DC0.36Wto0.64W ≡100m次 ≒100m次 BOC 500VAC BCC 1000VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥

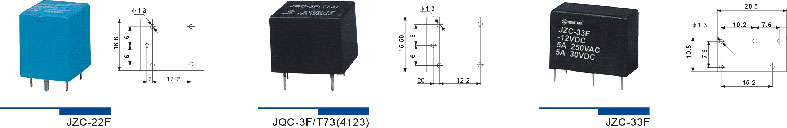

JZC-22F ≒14g 5A.7A.12A.15A 125VAC/28VDC DC 3V to 48V DC0.36Wto0.64W ≡100m次 ≒100m次 BOC 750VAC BCC 1000VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
T73(4123) ≒12g 10A 125VAC 10A 24VDC DC 3V to 48V DC0.36Wto48W ≡100m次 ≒100m次 BOC 750VAC BCC 1500VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
JZC-33F ≒9g 5A 250VAC 5A 30VDC DC 3V to 48V DC0.36Wto0.64W ≡100m次 ≒100m次 BOC 750VAC BCC 1500VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
JZC-32F ≒9g 3A 250VAC 3A 30VDC DC 3V to 48V DC0.2Wto0.45W ≡100m次 ≒100m次 BOC 1000VAC BCC 2500VAC Ele 100,000 Me 10,000,000 -30⊥ to 60⊥
JZC-35F(TV-5) ≒10g 8A 250VAC 8A 30VDC DC 3V to 48V DC≒0.8W ≡100m次 ≒100m次 BOC 500VAC BCC 1000VAC Ele 100,000 Me 10,000,000 -40⊥ to 85⊥

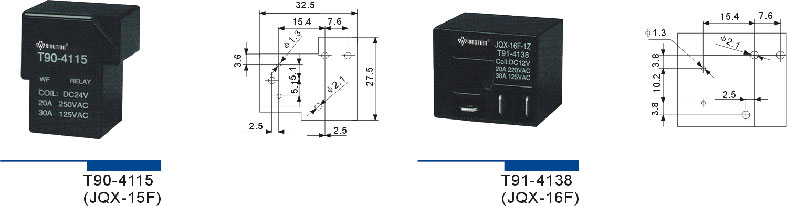

T90-4115(JQX-15F) ≒28g 20A 220VAC 30A 125VAC DC 3V to 48V DC≒0.93W ≡100m次 ≒50m次 BOC 1000VAC BCC 1500VAC Ele 100,000 Me 10,000,000 -40⊥ to 85⊥
T91-4138(JQX-16F) ≒33g 20A 220VAC 30A 125VAC DC 3V to 48V DC≒0.93W ≡100m次 ≒50m次 BOC 1000VAC BCC 1500VAC Ele 100,000 Me 10,000,000 -40⊥ to 85⊥
