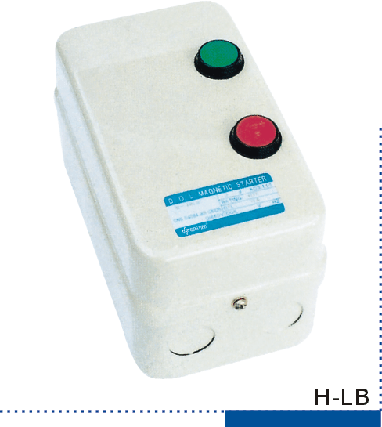

H-LB Magnetic Starter
Application
H-LB series magnetic starter is suitable to be used in the circuit of AC 50/60Hz, voltage up to 660V & current up to 60A, to start, control & stop the remote motor.
Specifications
Type
H-11LB
H-16LB
H-18LB
Rated Operating Voltage
660V
Rated operating current AC3 Ie(A)
220-240V
10
16
24
380-440V
9
12
15
500-550V
7
10
12
Rated power(KW)
AC-3
220-240V
2.2(3)
3.7(5)
5.5(7.5)
380-440V
4(5.5)
5.5(7)
7.5(10)
500-550V
4(5.5)
5.5(7)
7.5(10)
AC-1
110-220V
0.4(0.5)
0.75(1)

1.1(1.5)

220-240V
0.75(1)
1.5(2)
2.2(3)
Suitable AC contactor
C-11L
C-16L
C-18L
Suitable thermal relay
RH-10EB
RH-18M
