LE1-D Magnetic Starter

Application

LE1-D magnetic starter is mainly applied in circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breakingcircuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, highefficiency, safe and reliable performance etc.

Specifications
Maximum power AC3 duty(KW)

Rated current(A)



Type of enclosure
Code Number
Suitable Thermal Relay(A)
220V 230V
380V 400V
415V
440V
500V
660V 690V

LL

(long life)

NL(3)

(normal life)

2.2
4
4
4
5.5
5.5
9

IP42

IP65

LE1 D094..

LE1 D093..

- -

LR2 D1312

LR2 D1314

3
5.5
5.5
5.5
7.5
7.5
12

IP42

IP55

LE1 D124..

LE1 D123..

LE1 D094..

LE1 D093..

LR2 D1316



4
7.5
9
9
10
10
18

IP42

IP55

LE1 D188..

LE1 D185..

LE1 D124..

LE1 D123..

LR2 D1321



5.5
11
11
11
15
15
25

IP42

IP55

LE1 D258..

LE1 D255..

LE1 D188..

LE1 D185..

LR2 D1322

LR2 D2353

7.5
15
15
15
18.5
18.5
32
IP55
LE1 D325..
LE1 D255..

LR2 D2355



11
18.5
22
22
22
30
40
IP55
LE1 D405..
LE1 D325..

LR2 D2355

15
22
25
30
30
33
50
IP55
LE1 D505..
LE1 D405..

LR2 D3357

LR2 D3355

18.5
30
37
37
37
37
65
IP55
LE1 D655..
LE1 D505..

LR2 D3361

22
37
45
45
55
45
80
IP55
LE1 D805..
LE1 D655..

LR2 D3363

LR2 D3365

25
45
45
45
55
45
95
IP55
LE1 D955..
LE1 D805..

LR2 D3365

Specifications
Enclosure
LEI-D09 and D12
Double insulated,protected to IP429(3) or to IP659(4)
LEI-D18 and D25
Double insulated,protected to IP427(3) or to IP557(4)
LEI-D32...D95
Metal,IP55 to IP559
Control(2 pushbuttons mounted on enclosure cover)
LEI-D09...D95

1 green Start button"I"

1 red Stop/Reset button"O"



Connections
LEI-D09...D95
Pre-wired power and control circuit connections
Standard control circuit voltages
Volts
24
42
48
110
220/230
230
240
380/400
400
415
440
50/60Hz
B7
D7
E7
F7
M7
P7
U7
Q7
V7
N7
R7

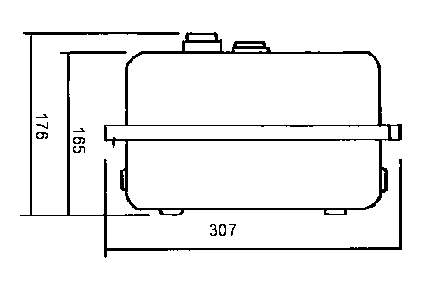

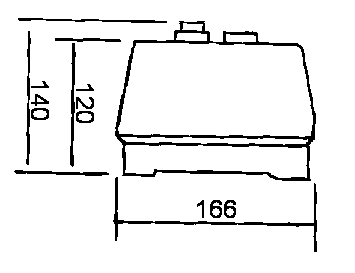

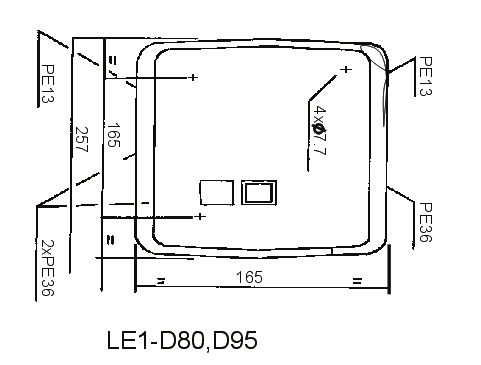

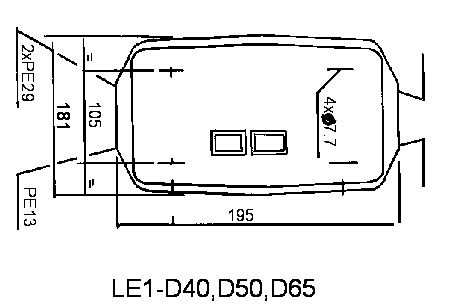

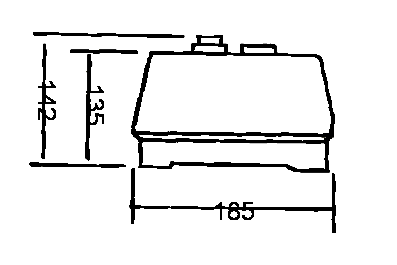

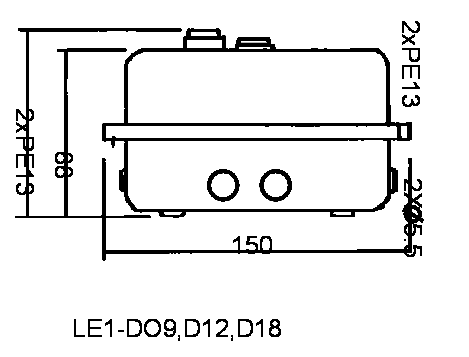

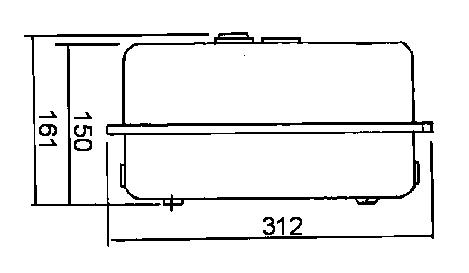

Dimensions
