MSB Magnetic Starter


Application

MSB series electromagnetic starters are used in a power line,AC 50-60Hz to start,stop and convent motors,and protect motors from overload and phase failure.

MSB9-MSB80 startersand convertible starters have two types:open type and protective cover type.
Specifications
  T16 T45 T85 T105 T170 T250 T370

control power

AC2/AC3/AC4

KW

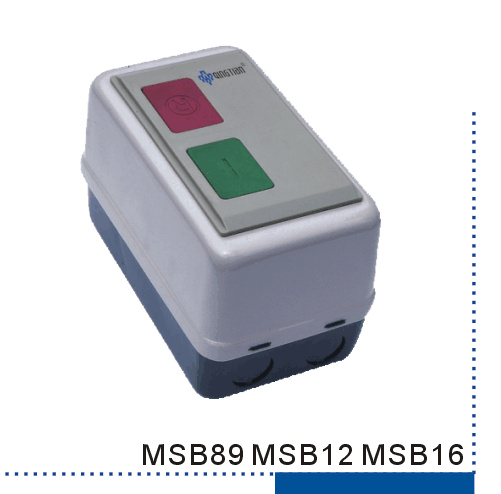

MSB9
，

2.2
4
 4
4
MSB12
，

3
5.5
 5.5
5.5
MSB16
，

4
7.5
 7.5
5.5

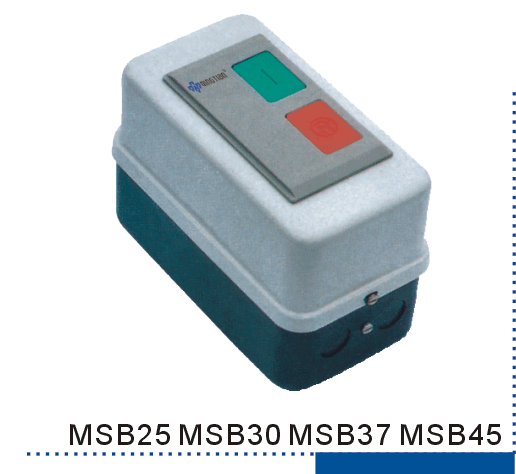

MSB25
，

6.5
11
 11
11
MSB30
，

9
15
 15
15
MSB37
，

10
 18.5 18.5
18.5
MSB45
，

13
22
 22
22
MSB65
，

16
33
 40
40

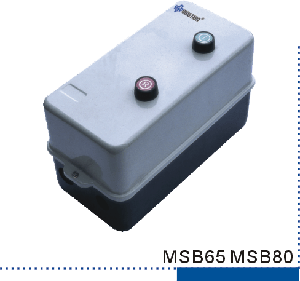

MSB80
，

20
45
 50
50
