Pushbutton Switch
Selector switches
Description
Contact/type
Scheme
Operator
Reference
2 Position stay put
N/C
Standard handle

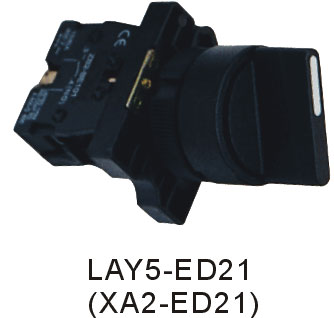

LAY5-ED21
Long handle
LAY5-EJ21
N/O+N/C
Standard handle
LAY5-ED25
Long handle
LAY5-EJ25
2 Position 1 spring return from right to left
N/O
Standard handle
LAY5-ED41
Long handle
LAY5-EJ41
N/O+N/C
Standard handle
LAY5-ED45
Long handle
LAY5-EJ45
3 Position stay put
N/O+N/O
Standard handle
LAY5-ED33
Long handle

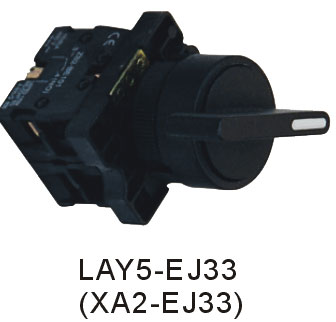

LAY5-EJ33
3 Position 2 spring return to centre
N/O+N/O
Standard handle
LAY5-ED53
Long handle
LAY5-EJ53
Key switches(key n455)
Description
Contact/type
Scheme
Key removal
Reference
2 Position tay put
N/O
LH position
LAY5-EG21
LH and RH position
LAY5-EG41
N/C+N/O
LH position
LAY5-EG25
LH and RH position
LAY5-EG45
2 Position 1 spring return from right to left
N/O
LH position
LAY5-EG61
N/O+N/0
LH position
LAY5-EG65
3 Position stay put
N/O+N/0
Centre position

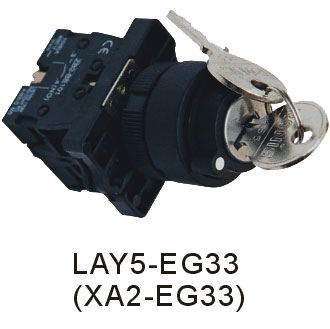

LAY5-EG33
LH and RH position
LAY5-EG53
All 3 position
LAY5-EG03
3 Postion 2 Spring return to centre position
N/O+N/0
Centre position
LAY5-EG73
Additional/replacement contact block,screw and captive cable
For making up body assembles with 3,4,5 or maximum of 6 contact blocks or replacing 1st or 2nd contact
N/O
Clamp connection

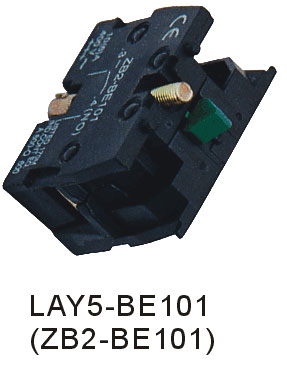

LAY5-BE101
N/C
LAY5-EE102
N/O

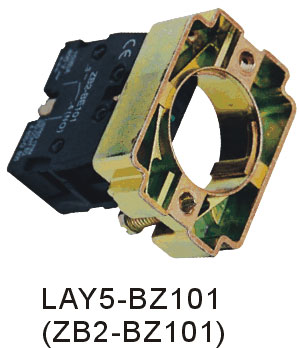

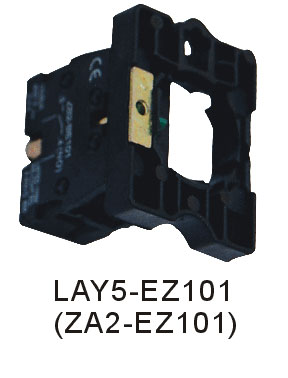

LAY5-EZ/BZ101
N/C
LAY5-EZ/BZ102
N/O+N/0
LAY5-EZ/BZ103
N/C+N/C
LAY5-EZ/BZ104
N/O+N/C
LAY5-EZ/BZ105
°
